Anti-sweep stop for wire hooks on slatwall, on the end of a wire hook's arm

Building…

Anti-sweep stop for wire hooks for slatwall

Not test-printed yetBuilding…

Colours

Puts this design back in its own colours. Designs you haven't coloured show their own colours too, until you pick new ones.

Set your own measurements

Hook

Hook wire thickness

Measure the hook's prong wire with calipers: 1/8 in = 3.2 mm, 3/16 in = 4.8 mm, 1/4 in = 6.4 mm

Stop

Stop height above the wire

How far the grip fin stands above the top of the wire. Taller stops items with bigger holes or hangers

Clip length along the wire

Cap over the wire end

On: the clip's front end closes over the cut end of the wire, so a shove can't push it off the tip. Off: an open clip for hooks with a ball or bent-up tip, which then stops it

Holds: Steel hooks you own
Kind: Anti-sweep stop
Prints as: One piece
Needs: Nothing to buy

Print settings, already in the 3MF

Worked out from your setup once the part has built.

Anti-sweep stop for wire hooks

Holds: Steel hooks you own

Prints as 1 piece

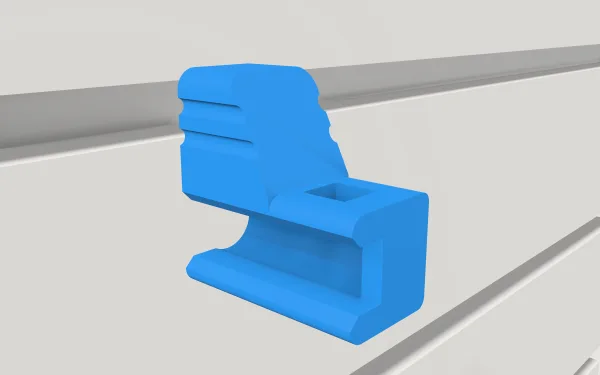

Snaps onto a steel wire hook's prong so things hung behind it can't be knocked off. It never touches the wall, so it works wherever the hook fits; lift items over its fin. Measure the wire, and print in PETG or ASA: PLA cracks.

CC BY 4.0 · Free

Not test-printed yet. Made with AI and checked against the rules on every wall, but no test print has confirmed it yet.

Walls it fits

VEVOR PVC slatwallFits · some wall sizes assumed · not test-printed yet
StoreWallFits · some wall sizes assumed · not test-printed yet
HandiwallFits · some wall sizes assumed · not test-printed yet
Trusscore SlatWallFits · some wall sizes assumed · not test-printed yet
Retail MDF slatwall, 3 inFits · some wall sizes assumed · not test-printed yet
Flow WallFits · some wall sizes assumed · not test-printed yet
Gladiator GearWallFits · some wall sizes assumed · not test-printed yet
ProSlat PVC slatwallWon't fit: ProSlat doesn't publish its slot. Measure your wall and use Custom

History

First published 8 Oct 2026 1.1.0
