Bin hook on slatwall, holding the rim of a blue recycling tote

Building…

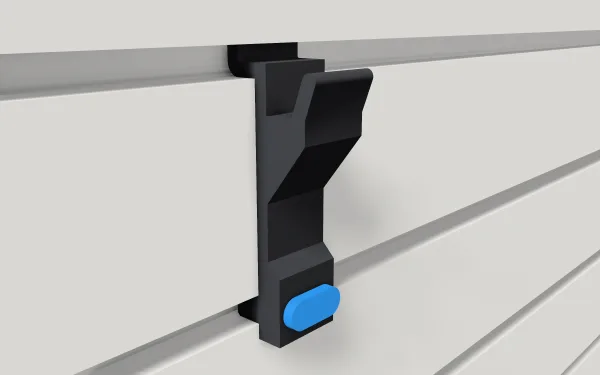

Bin hook for slatwall

Building…

Colours

Puts this design back in its own colours. Designs you haven't coloured show their own colours too, until you pick new ones.

Set your own measurements

Hook size

Hook widthTested

25.4 mm = 1 in, 50.8 mm = 2 in

Bin hook

Reach (spine to finger)Tested

Where the bin's rolled rim drops in

Channel depthTested

Below the hook seat

Finger lengthTested

Latch (optional)

Add latch tab

Not yet printed. A tab on the key tip turns up behind the slat, so the hook can't be pulled out

Top wedge (optional)

Add top wedge

Not yet printed. Push the orange button on top of the ledge toward the wall to fill the gap above the arm, so the hook can't lift off. Pull it back out before tipping the hook in or out

Holds: Bins & tubs
Kind: Bin hook
Prints as: One piece
Needs: Nothing to buy

Print settings, already in the 3MF

Worked out from your setup once the part has built.

Bin hook

Holds: Bins & tubs

Prints as 1 piece

Hangs a recycling bin from one slat. The bin's rolled rim drops into a channel and the finger in front catches it. Set the reach to match your bin.

CC BY 4.0 · Free

Walls it fits

VEVOR PVC slatwallFits · some wall sizes assumed
StoreWallFits
HandiwallFits · some wall sizes assumed
Trusscore SlatWallFits
Retail MDF slatwall, 3 inFits
Flow WallFits · some wall sizes assumed
Gladiator GearWallWon't fit: its slot opening is 17 mm, and the cam-lock mount needs a slot opening from 8.5 to 11 mm
ProSlat PVC slatwallWon't fit: ProSlat doesn't publish its slot. Measure your wall and use Custom

History

First published 6 Oct 2026 1.0.0
