J-hook for slatwall

Building…

Colours

Puts this design back in its own colours. Designs you haven't coloured show their own colours too, until you pick new ones.

Set your own measurements

J-hook / peg

Arm length

Straight part, out from the spine, before the bend

Arm tilt

Upward angle of the arm

Tip turn

How far the end bends up: 0 = straight peg, 90 = J

Tip length

Straight part after the bend

Inside bend radius

Bigger = a rounder seat for what hangs on it

Mount

Mount width

25.4 mm = 1 in, 50.8 mm = 2 in. The J-hook is this wide

Worked out from your setup once the part has built.

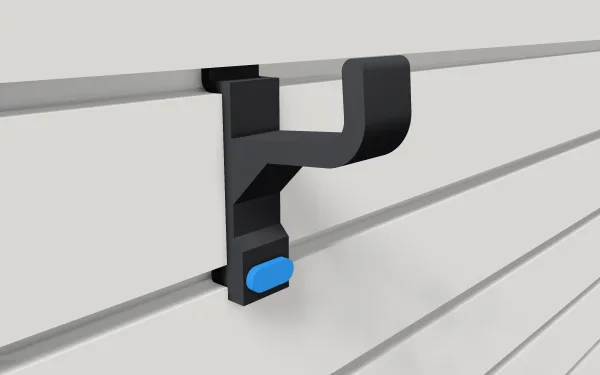

J-hook

Holds: Jacket & bag · Cables · Headphones

Prints as 1 piece

Hangs bags, cables or headphones on a J-hook, or tape rolls on a peg. Pick a shape, then set the arm's length, tilt and tip.

CC BY 4.0 · Free

VEVOR PVC slatwallFits · some wall sizes assumed
StoreWallFits
HandiwallFits · some wall sizes assumed
Trusscore SlatWallFits
Retail MDF slatwall, 3 inFits
Flow WallFits · some wall sizes assumed
Gladiator GearWallWon't fit: its slot opening is 17 mm, and the hook arm needs a slot opening from 8.5 to 11 mm
ProSlat PVC slatwallWon't fit: ProSlat doesn't publish its slot. Measure your wall and use Custom
