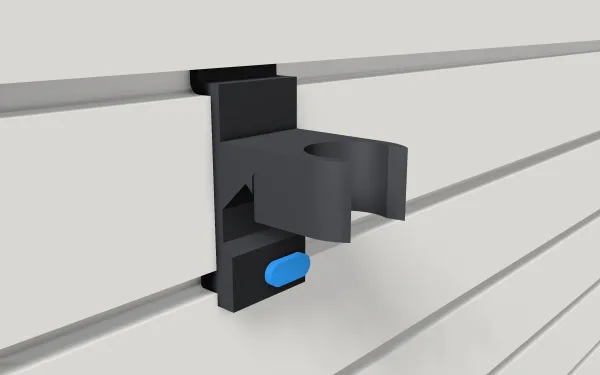

Rake & shovel gripper on slatwall, holding a spade by its handle

Building…

Rake & shovel gripper for slatwall

Not test-printed yetBuilding…

Colours

Puts this design back in its own colours. Designs you haven't coloured show their own colours too, until you pick new ones.

Set your own measurements

Settings

Handle diameter

Measure the handle where it will sit in the clip, with calipers if you have them. Most brooms and mops are 22 to 25 mm, rakes and shovels 28 to 32 mm

Arm reach

How far the clip stands off the wall. Longer clears bulky mop and push-broom heads

Clip height

Taller holds the handle straighter and grips harder, but snaps in stiffer

Holds: Rake & shovel
Kind: Broom & mop gripper
Prints as: One piece
Needs: Nothing to buy

Print settings, already in the 3MF

Worked out from your setup once the part has built.

Rake & shovel gripper

Holds: Rake & shovel

Prints as 1 piece

Holds a broom, mop, rake or shovel upright in a snap-in clip that grips the handle. Push the handle into the flared mouth; pull it straight out. Measure your handle, print in PETG or ASA (PLA loses its grip), and hang one tool up to about 1.5 kg.

CC BY 4.0 · Free

Not test-printed yet. Made with AI and checked against the rules on every wall, but no test print has confirmed it yet.

Walls it fits

VEVOR PVC slatwallFits · some wall sizes assumed · not test-printed yet
StoreWallFits · some wall sizes assumed · not test-printed yet
HandiwallFits · some wall sizes assumed · not test-printed yet
Trusscore SlatWallFits · some wall sizes inferred · not test-printed yet
Retail MDF slatwall, 3 inFits · some wall sizes inferred · not test-printed yet
Flow WallFits · some wall sizes assumed · not test-printed yet
Gladiator GearWallWon't fit: its slot opening is 17 mm, and the hook arm needs a slot opening from 8.5 to 11 mm
ProSlat PVC slatwallWon't fit: ProSlat doesn't publish its slot. Measure your wall and use Custom

History

First published 8 Oct 2026 0.2.1
