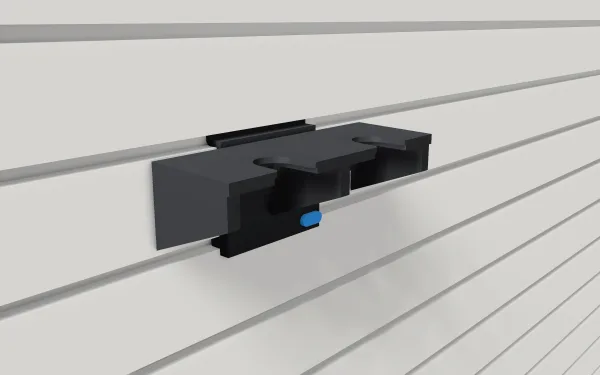

Spray-bottle rack on slatwall, holding two trigger spray bottles

Building…

Spray-bottle rack for slatwall

Not test-printed yetBuilding…

Colours

Puts this design back in its own colours. Designs you haven't coloured show their own colours too, until you pick new ones.

Set your own measurements

Bottles

Bottle spacing

Centre to centre: the widest bottle plus about 14 mm, so it hangs clear of the gussets. A round 32 oz bottle is about 90 mm across; oval ones up to about 105 mm

Neck widthTested

Across the bottle's neck just under the trigger cap; most trigger sprayers sit on a 28 mm neck, smaller ones on 24 mm

Neck distance from wall

From the wall to the centre of the neck; at least half the bottle's depth front to back plus 6 mm, so it hangs clear of the back web

Holds: Spray bottle
Kind: Spray-bottle rack
Prints as: One piece
Needs: Nothing to buy

Print settings, already in the 3MF

Worked out from your setup once the part has built.

Spray-bottle rack

Holds: Spray bottle

Prints as 1 piece

Hangs one or two trigger spray bottles by the neck, just under the trigger. Slide a neck in from the front; drips run off the front, not down the wall. Print in PETG or ASA: in PLA, two full 32 oz bottles are over its limit.

CC BY 4.0 · Free

Not test-printed yet. Made with AI and checked against the rules on every wall, but no test print has confirmed it yet.

Walls it fits

VEVOR PVC slatwallFits · some wall sizes assumed · not test-printed yet
StoreWallFits · some wall sizes assumed · not test-printed yet
HandiwallFits · some wall sizes assumed · not test-printed yet
Trusscore SlatWallFits · some wall sizes inferred · not test-printed yet
Retail MDF slatwall, 3 inFits · some wall sizes inferred · not test-printed yet
Flow WallFits · some wall sizes assumed · not test-printed yet
Gladiator GearWallWon't fit: its slot opening is 17 mm, and the cam-lock mount needs a slot opening from 8.5 to 11 mm
ProSlat PVC slatwallWon't fit: ProSlat doesn't publish its slot. Measure your wall and use Custom

History

First published 8 Oct 2026 1.0.1
